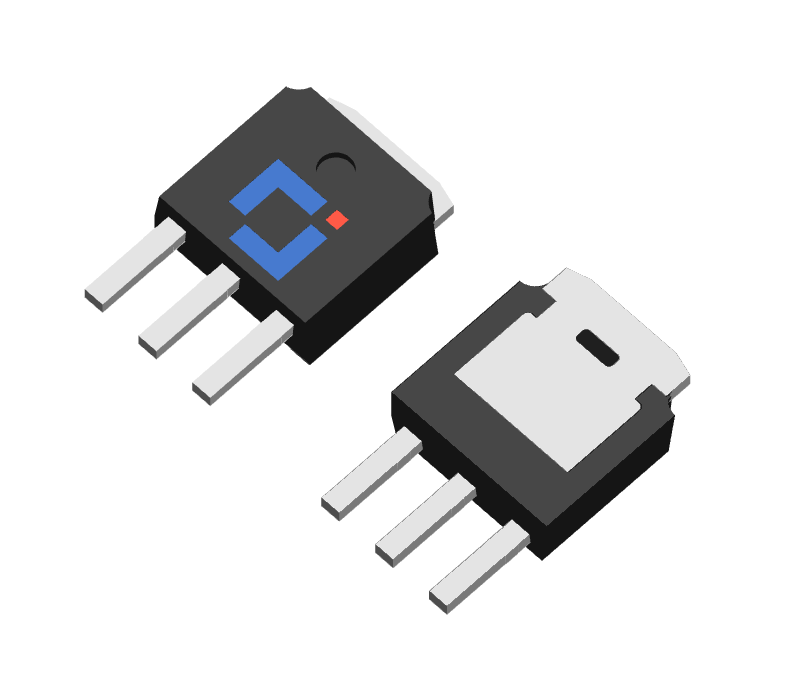

Nch 100V 65A, TO-251S, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJD65SN10H | Active | No | 100 | ±20 | 65 | 2~4 | 11 | 13.6 | - | - | TO-251S |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJD65SN10H | TO-251S | D65SN10H | Tube,80/tube | 4k | 40k | NA |
