| Part Number | Download | Circuit | Status | Type | Process |
ESDYes/No |

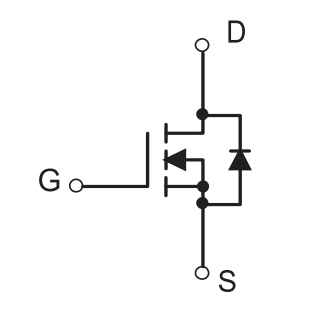

VDSV |
VGSV |
IDA |
VGS(TH)V |
RDS(mΩ)@VGS10V Typ |
RDS(mΩ)@VGS10V Max |
RDS(mΩ)@VGS4.5V Typ |
RDS(mΩ)@VGS4.5V Max |
Package |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
CJAC012SN15BH |
 |
 |
Active |
Single-N |
SGT |
No |
150 |
±20 |
80 |
2.0～4.0 |
9.1 |
11.5 |
- |
- |
PDFNWB5x6-8L |
|
CJAC1R9SN04AL |
|
 |
Active |
Single-N |
SGT |
No |
40 |
±20 |
200 |
1.3～2.5 |
1.5 |
1.9 |
2.4 |
3.5 |
PDFNWB5x6-8L |
|
CJAC6R0SN04AL |
|
 |
Active |
Single-N |
SGT |
No |
40 |
±20 |
55 |
1.5～2.5 |
4.2 |
5.5 |
7.7 |
10.8 |
PDFNWB5x6-8L |
|
CJAC1R6SN03A |
|
 |
Active |
Single-N |
SGT |
No |
30 |
±20 |
240 |
1.2~2.2 |
1.4 |
1.7 |
2 |
2.8 |
PDFNWB5x6-8L |
|
CJAC40SN10H |
|
|
Active |
Single-N |
SGT |
No |
100 |
±20 |
40 |
2.0~4.0 |
14 |
17 |
- |
1 |
PDFNWB5x6-8L |
|
CJAC1R2SN03A |
|
|
Active |
Single-N |
SGT |
No |
30 |
±20 |
300 |
1.3~2.2 |
0.9 |
2.2 |
1.4 |
2 |
PDFNWB5x6-8L |
|
CJAC5R6SN03AL |
|
 |
Active |
Single-N |
SGT |
No |
30 |
±20 |
40 |
1.2~2.4 |
4.7 |
5.6 |
7.5 |
10 |
PDFNWB5x6-8L |
|
CJAB6R0SN04AL |
|
 |
Active |
Single-N |
SGT |
No |
40 |
±20 |
90 |
1.5~2.5 |
4.1 |
5.5 |
7.3 |
10 |
PDFNWB3.3x3.3-8L |
|
CJAC3R6SN10AH |
|
 |
Active |
Single-N |
SGT |
No |
100 |
±20 |
180 |
2.4~3.8 |
3 |
3.6 |
|
|
PDFNWB5x6-8L-F |
|
CJQ014SN06AL |
|
 |
Active |
Single-N |
SGT |
No |
60 |
±20 |
12 |
1.3~2.5 |
9.4 |
11.5 |
13.3 |
16.5 |
SOP8 |
|
CJAC5R0SN06AL |
|
|
Active |
Single-N |
SGT |
No |
60 |
±20 |
98 |
1.3~2.3 |
3.8 |
5 |
5.2 |
7.6 |
PDFNWB5x6-8L |
|
CJAC6R0SN10AL |
|
|
Active |
Single-N |
SGT |
No |
100 |
±20 |
95 |
1.4~2.4 |
4.6 |
6 |
6.5 |
8.6 |
PDFNWB5x6-8L |
|
CJAC75SN10L |
|
 |
Active |
Single-N |
SGT |
No |
100 |
±20 |
75 |
1.4~2.5 |
9.4 |
12 |
12.4 |
16 |
PDFNWB5x6-8L |
|
CJQ9R9SN065AL |
|
 |
Active |
Single-N |
SGT |
No |
65 |
±20 |
11 |
1.3~2.5 |
7.5 |
9.9 |
9.7 |
15 |
SOP8 |
|
CJQ10SN15S |
|
 |
Active |
Single-N |
SGT |
No |
150 |
±20 |
10 |
2~4 |
40 |
52 |
- |
- |
SOP8 |
|
CJAB30SN10H |
|
 |
Active |
Single-N |
SGT |
No |
100 |
±20 |
30 |
2~4 |
14 |
17.5 |
- |
- |
PDFNWB3.3x3.3-8L |
|
CJD65SN10H |
|
 |
Active |
Single-N |
SGT |
No |
100 |
±20 |
65 |
2~4 |
11 |
13.6 |
- |
- |
TO-251S |
|
CJAE9R0SN06AL |
|
 |
Active |
Single-N |
SGT |
No |
60 |
±20 |
50 |
1.3~2.5 |
7 |
9 |
10 |
13 |
DFNWB3x3-8L |
|
CJB120SN08H |
|
 |
Active |
Single-N |
SGT |
No |
85 |
±20 |
120 |
2~4 |
5.1 |
6.1 |
- |
- |
TO-263-2L |
|
CJP180SN10 |
|
 |
Active |
Single-N |
SGT |
No |
100 |
±20 |
180 |
2~4 |
2.5 |
3 |
- |
- |
TO-220-3L-C |
