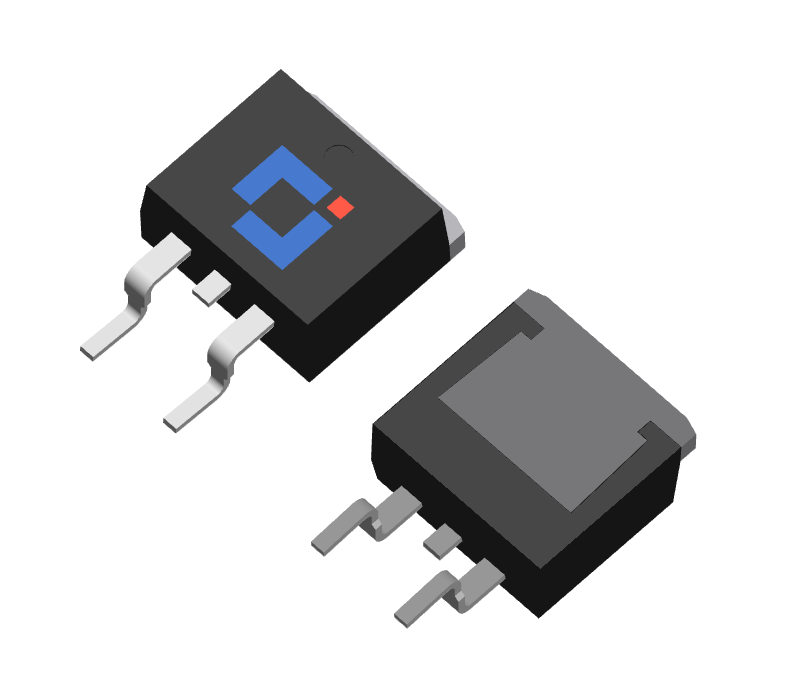

Nch 85V 120A, TO-263-2L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJB120SN08H | Active | No | 85 | ±20 | 120 | 2~4 | 5.1 | 6.1 | - | - | TO-263-2L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJB120SN08H | TO-263-2L | B120SN08H | 800pcs/Reel;13 inch | 1.6K | 8K | MSL3 |
