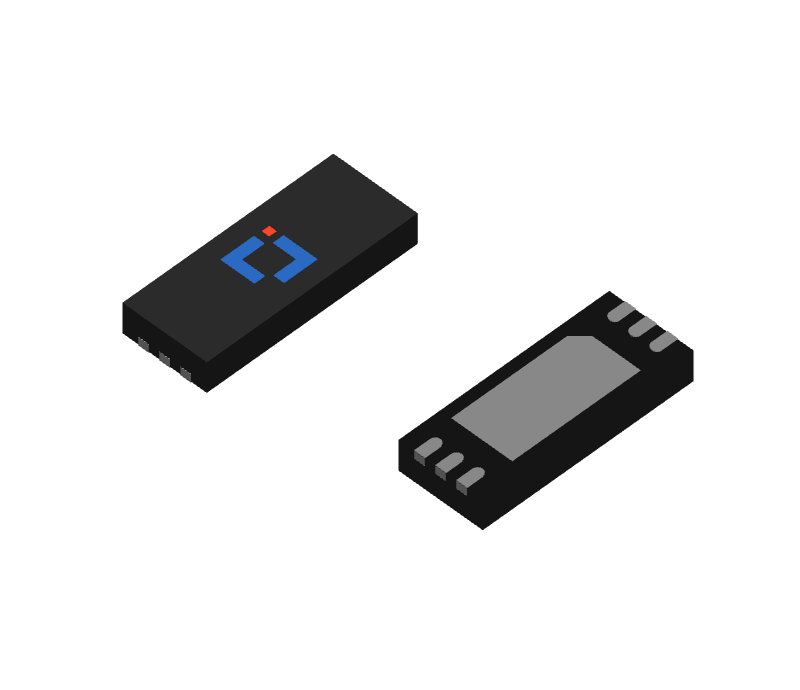

Dual Nch 20V 10A, DFNWB2×3-6L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJND2004 | Active | Yes | 20 | ±12 | 10 | 0.4~1 | - | - | 8.0 | 10.5 | DFNWB5x2-6L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJND2004 | DFNWB5x2-6L | ND2004 | 2.5K/Reel;13 inch | 20K | 80K | MSL3 |
