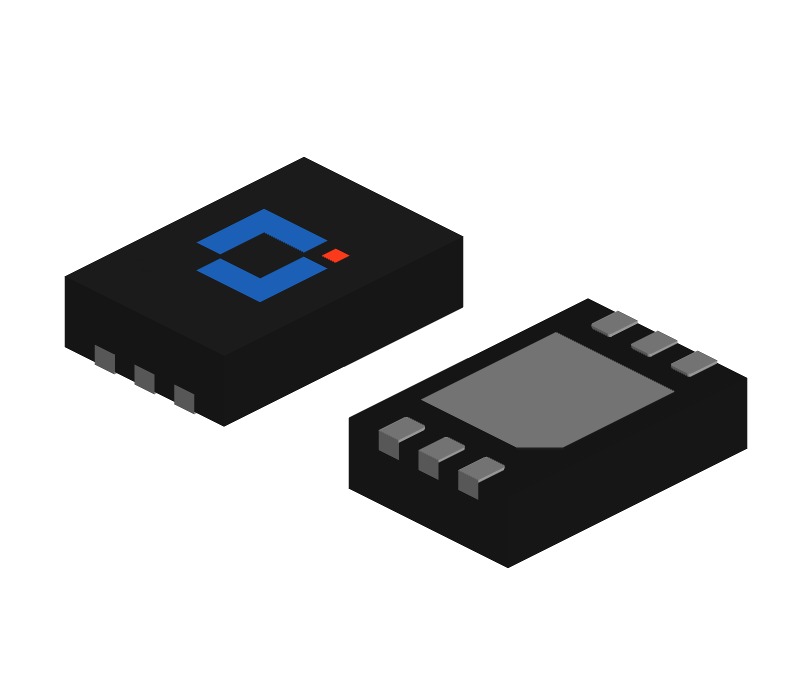

Dual Nch 18V 10A, DFNWB2×3-6L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJCD2003 | Active | Yes | 18 | ±12 | 10 | 0.4~1 | - | - | 6.2 | 7.2 | DFNWB2x3-6L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJCD2003 | DFNWB2x3-6L | 2003 | 3K/Reel;7 inch | 30K | 120K | MSL1 |
